Material Testing

Tensile Grips

Mechanical Wedge Grips

Mechanical Vice Action Grips

Pneumatic Side Opening Grips

Pneumatic Wedge Grips

Hydraulic Side Action Grips

Hydraulic Wedge Grips

Capstan Bollard Grips

Needlenose Grips

Self Tightening Spring Action Grips

Threaded & Buttonhead Sample Holder

Sample Specific Tensile Holder

Hook & Loop Test Fixtures

Mechanical Wedge Action Grips

Mechanical wedge action grips are ideal for testing hard, round or flat metallic or composite test samples. The wedge action design creates a highly leveraged clamping load that increases as the sample is pulled. The simplicity of our wedge action grip makes it an affordable solution for tensile testing. We offer a wide selection of options in both standard and custom engineered solutions. All of our mechanical wedge action grips will fit any brand of test machine through the use of an adapter.

G7W Mechanical Wedge Grip

Model: #G7W
Force: 5 kN
Specimen max thickness: 8 mm
Clamp Type: Lever arm

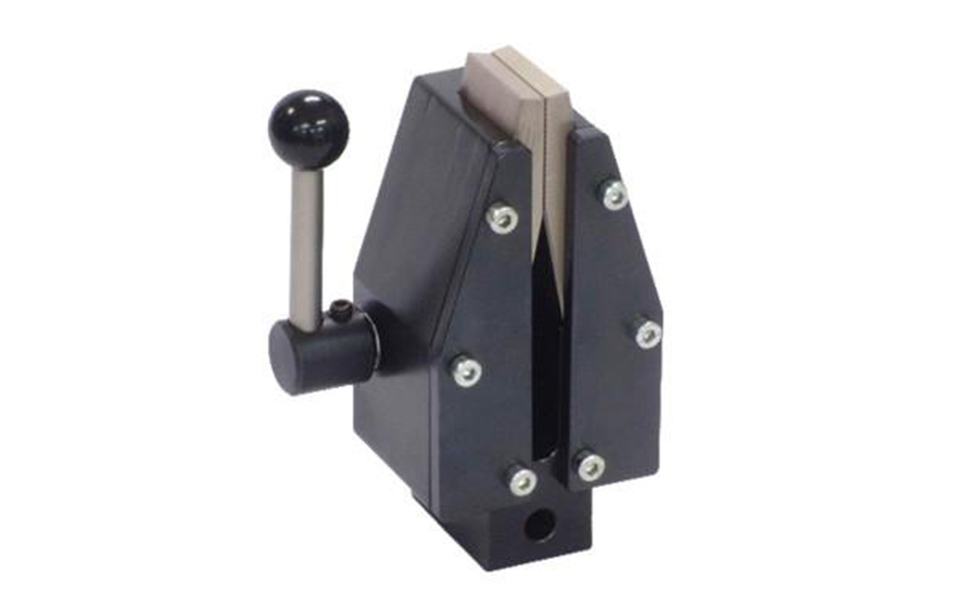

G256 Mechanical Wedge Grip

Model: #G256-5-8
Force: 5 kN
Specimen max thickness: 8 mm
Clamp Type: Lever arm

G622 Mechanical Wedge Grip

Model: #G622-10-11
Force: 10 kN
Specimen max thickness: 9 mm
Clamp Type: Lever arm

G243 Mechanical Wedge Grip

Model: #G243
Force: 20 kN and 50 kN
Specimen max thickness: 16 mm
Max temperature: 280 degC
Min temperature: -70 degC
Sample Width: 35 mm
Clamp Type: Lever arm

G109 Mechanical Wedge Grip

Model: #G109
Force: Up to 500kN
Specimen: Up to 50mm in diameter or thickness
Clamp Type: Gearbox

G140W Tensile Mechanical Wedge Grip

Model: #G140W
Force: 400 kN to 600 kN
Specimen: Up to 50mm in diameter or thickness
Clamp Type: Gearbox

G45 Mechanical Wedge Grip

Model: #G45
Force: 250 kN to 400 kN
Specimen: Up to 75mm in diameter or thickness
Clamp Type: Gearbox

GT122 Mechanical Wedge Grip

Model: #GT122
Force: 10 kN to 500 kN
Specimen: Ranges 18 - 21 mm in diameter or thickness
Clamp Type: Rotating arms

G527 Mechanical Wedge Grip

Model: #G527
Force: 20 kN to 250 kN
Specimen: Ranges 16 - 30 mm in diameter or thickness
Clamp Type: Rotating arms

G204 Mechanical Wedge Grip

Model: #G204
Force: 50 kN
Specimen max thickness: 40 mm or 60 mm
Clamp Type: Gearbox

GB5-300 Mechanical Wedge Tension Fatigue Grip

Model: #GB5-300
Force: 25 kN to 100 kN
Grip Capacity increases to 150% when used in static testing appliations
Specimen: Ranges 12 - 20 mm in diameter or thickness
Clamp Type: Rotating arms

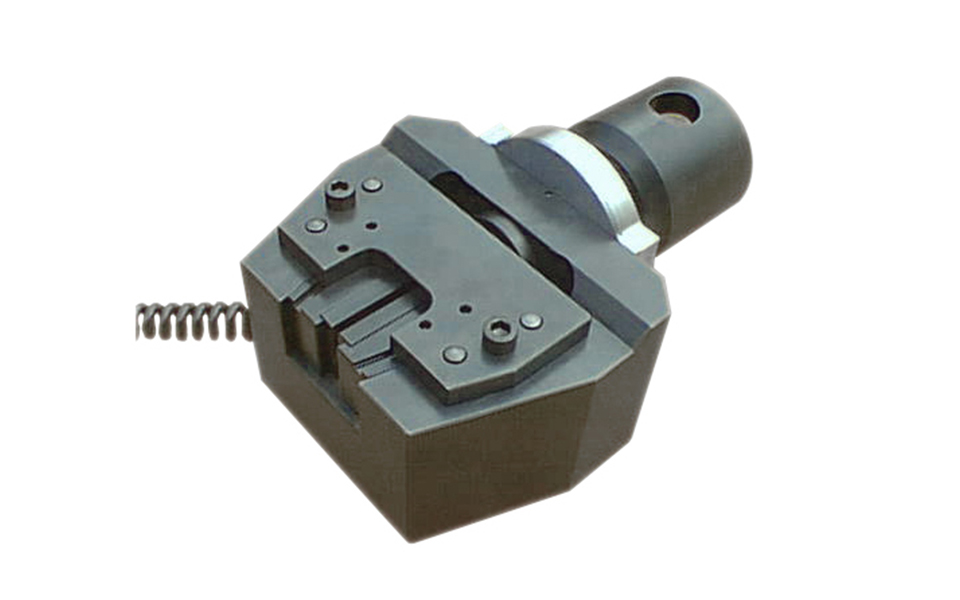

G185 Mechanical Wedge Grip

Clamp Type: Motorized

G224 Mechanical Wedge Grip

Clamp Type: Gearbox

G208 Mechanical Wedge Grip

Clamp Type: Gearbox

Click here to go back to Tensile Grips selection

Mechanical Vice Action Grips

Mechanical side action grips, also referred to as mechanical vise grips, are typically the least expensive grip in their force class because they don’t have the complexity of powered grips. Unlike pneumatic grips or hydraulic grips, they do not require additional infrastructure. Which makes them the most simple, easy to use, low maintenance and the preferred solution for testing wide width, non-elastic materials and irregular specimen geometries, including product testing applications. We offer a wide selection of options in both standard and custom engineered solutions. All of our mechanical side action grips will fit any brand of test machine through the use of an adapter.

G140K Mechanical Vice Grip

Model: #G140K
Force: 0.1 kN
Specimen max thickness: 8 mm
Clamp Type: Knob

G341 Mechanical Vice Grip

Model: #G341
Force: 0.1 kN
Specimen max thickness: 4 mm
Clamp Type: Knob

G227 Series Mechanical Vice Grip

Model: #G227
Force: 0.1 kN
Specimen max thickness: 8 mm or 46 mm
Clamp Type: Knob

G90 Mechanical Vice Grip

Model: #G90
Force: 50 kN
Specimen thickness: 0 - 30 mm
Clamp Type: Air or Torque Wrench

G240K Series Mechanical Vice Grip

Model: #G240K
Force: 1 to 5 kN
Specimen thickness: 10 to 50 mm
Clamp Type: T-Handle

G240G Mechanical Vice Action Grip

Model: #G240G
Force: 5 kN
Specimen thickness: 30 to 100 mm
Clamp Type: T-Handle

G56G Mechanical Vice Grip

Model: #G56G
Force: 5 kN
Specimen thickness: 15mm & 44 mm
Clamp Type: T-handle

G154 Mechanical Vice Grip

Model: #G145
Force: 10 kN & 20 kN
Specimen: 30 mm
Clamp Type: T-Handle

G56K Mechanical Vice Grip

Model: #G56K
Force: 1 kN
Specimen: 11 mm
Clamp Type: T-Handle

Click here to go back to Tensile Grips selection

Pneumatic Side Action Grips

Pneumatic side action grips are air powered grips that create a consistent and repeatable clamp load which ensures higher throughput and less operator fatigue. We offer a wide range of grips with different force capacities, sample types and sizes. Our standard grips go up to 220 mm (8.66 in) wide and 60 mm (2.36 in) thick and we also provide custom engineered solutions for more unique test samples. All of our pneumatic side action grips will fit any brand of test machine through the use of an adapter.

G22P Pneumatic Side Opening Grip

Model: #G22P
Force: 1.3 kN
Clamp Force: 3.5 kN
Specimen thickness: 60 mm

G56GP Series Pneumatic Tensile Grip

Model: #G56GP
Force: 1.3 kN
Specimen thickness: 15 mm & 43 mm

G56KP Pneumatic Side Opening Grip

Model: #G56kP
Force: 0.6 kN
Specimen thickness: 11 mm

G65 Pneumatic Grip

Model: #G65
Force: 5.5 kN
Clamp Force: 11 kN
Specimen thickness: 20 mm

G83 Pneumatic Side Opening Grip

Model: #G83
Force: 3.5 kN
Clamp Force: 7 kN
Specimen thickness: 30 mm

G94 Pneumatic Side Opening Grip

Model: #G94
Force: 0.1 kN
Specimen thickness: 18 mm

G108 Series Pneumatic Grip

Model: #G108
Force: 1.7 kN
Specimen thickness: 30 mm & 60 mm

G154 Mechanical Vice Grip

Model: #G154
Force: 2 kN
Specimen thickness: 20 mm

G370 Pneumatic Side Action Grip

Model: #G370
Force: 5 kN
Clamp Force: 10 kN
Specimen thickness: 10 mm

G140KP Lightweight Pneumatic Side Opening Grip

Model: #G140KP
Force: 70 N
Clamp Force: 140 N
Specimen thickness: 3 mm

G149 Pneumatic Side Opening Grip

Model: #G149
Force: 1.3 kN
Clamp Force: 2.4 kN
Specimen thickness: 6 mm

G229 Series Pneumatic Grip

Model: #G229
Force: 0.5 kN
Clamp Force: 1 kN
Specimen thickness: 6 mm

G232 Pneumatic Side Opening Grip

Model: #G232
Force: 8 kN
Clamp Force: 16 kN
Specimen thickness: 10 to 30 mm

G240GP Pneumatic Side Opening Grip

Model: #G240GP
Force: 1.3 kN
Clamp Force: 2.6 kN
Specimen thickness: 24 to 100 mm

G240KP Pneumatic Side Opening Grip

Model: #G240KP
Force: 0.6 kN
Clamp Force: 1.2 kN
Specimen thickness: 8 to 50 mm

G341P Pneumatic Vice Grip

Model: #G341P
Force: 100 N
Clamp Force: 130 N
Specimen thickness: 3 mm

G132 Pneumatic Side Opening Grip

Model: #G132
Force: 3.5 kN
Specimen thickness: 15 mm

G501 Pincer Pneumatic Grip for Small Samples

Model: #G501
Clamp Force: 2 kN
Length: jaw 5 mm deep
Thickness: 0 to 6 mm
Width: jaw 5 mm wide

Click here to go back to Tensile Grips selection

Pneumatic Wedge Action Grips

Pneumatic wedge action grips are air powered grips that produce high clamp forces required to test high strength materials. We offer a wide range of grips with different force capacities, sample types and sizes. Our standard grips go up to 500 kN (112 kip) force capacity and 50 mm (2 in) thick. We also provide custom engineered solutions for more unique test samples. All of our pneumatic wedge action grips will fit any brand of test machine through the use of an adapter.

G175 Pneumatic Wedge Grip

Model: #G175
Force: 10, 20, 50 &100 kN
Specimen thickness: 16, 20, 22, 33 & 40 mm
Specimen width: 60 & 100 mm

G321 Pneumatic Wedge Grips for Environmental Chambers

Model: #G321
Force: 20 to 250 kN
Specimen: Flat specimen thickness to 33 mm; Round specimen to 44 mm diameter
Specimen width: 50 & 80 mm

G889 Pneumatic Wedge Action Grip

Model: #G889
Force: 15 kN
Specimen thickness: 5 mm

G622P Pneumatic Wedge Action Grip

Model: #G622P
Force: 5 kN
Specimen thickness: 9 mm

G109-150 with Pneumatic Cylinder

Model: #G109-150
Force: 100 to 500 kN
Specimen thickness: 50 mm

Click here to go back to Tensile Grips selection

Hydraulic Side Action Grips

Hydraulic side action grips are available as standard products and modular engineered solutions. We have provided side action grips with force capacities up to 3 MN (700,000 lbf) clamp load. All of our hydraulic grips will fit any brand of test machine through the use of an adapter.

G135 Hydraulic Vice Action Grip

Model: #G135
Force: 30 & 90 kN
Clamp Force: 60 & 180 kN
Specimen thickness: 15 mm

G872 Hydraulic Side Action Grip

Model: #G872
Force: 83 kN
Specimen thickness: 32 mm

G4 Hydraulic Side Action Grip

Model: #G4
Force: 83 kN
Specimen thickness: 12 mm

G226 Hydraulic Side Action Grip

Model: #G226
Force: 195 kN
Specimen thickness: 50 mm

G137 Hydraulic Side Action Grip

Model: #G137
Force: 350 kN
Specimen thickness: 64 mm

G513 Hydraulic Side Action Grip

Model: #G513
Force: 600 kN
Specimen thickness: 80 mm

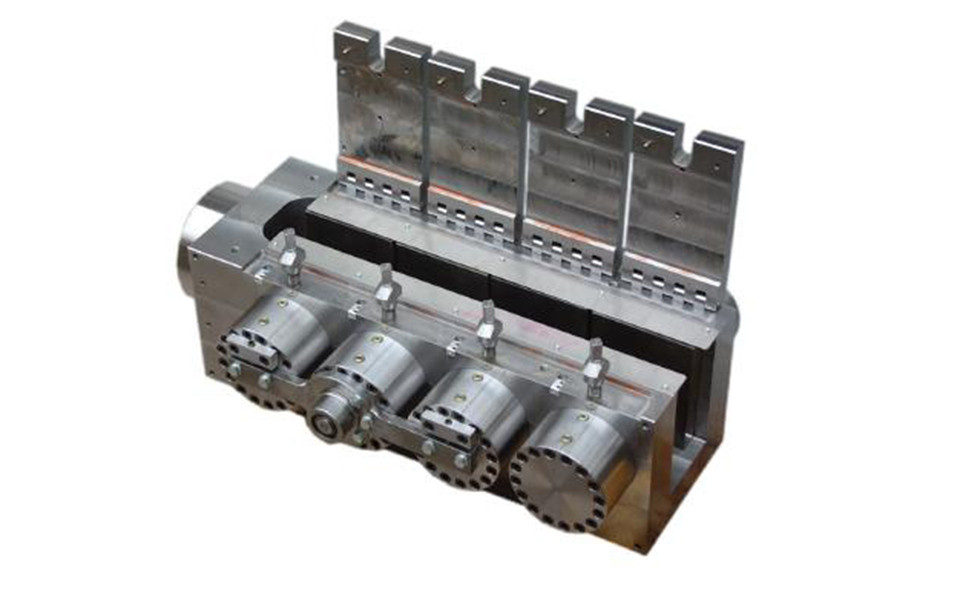

G480 Hydraulic Side Action Grip

Model: #G480
Force: 1500 kN
Specimen thickness: 100 mm

Click here to go back to Tensile Grips selection

Hydraulic Wedge Action Grips

Hydraulic wedge action grips are available as standard products and as modular engineered solutions. The wedge action design creates a highly leveraged clamp load that increases as the sample is tightened. They are ideal when testing hard round or flat metallic or composite test samples. All of our hydraulic grips will fit any brand of test machine through the use of an adapter.

G321 Pneumatic Wedge Grips for Environmental Chambers

Model: #G321
Force: 20 to 250 kN
Specimen: Flat specimen thickness to 33 mm; Round specimen to 44 mm diameter
Specimen width: 50 to 80 mm

G681 Hydraulic Wedge Grip

Model: #G135
Force: 250 kN
Specimen thickness: 30 mm

GB5-400 Hydraulic Wedge Fatigue Grip

Model: #GB5-400
Force: 25 to 1000 kN
Specimen: 27 mm in thickness & diameter
Specimen width: 25 to 75 mm

GB5-800 Hydraulic Axial Torsion Wedge Fatigue Grip

Model: #GB5-800
Force: up to 100 kN & 2 kNm

G186 Hydraulic Wedge Grip

Model: #G186
Force: 400 to 1500 kN
Specimen thickness: 60 mm

Click here to go back to Tensile Grips selection

Capstan Bollard Grips

Our Capstan Bollard grip designs are simple and cost effective gripping solutions that reduce jaw breaks and sample slippage that are common in direct clamp designs. Capstan Bollard grips are all engineered to perform high strength tensile tests where the test samples are long compared to their cross-sectional area, such as wire, rope and strapping. We offer a wide selection of options in both standard and custom engineered solutions. All of our capstan bollard grips will fit any brand of test machine through the use of an adapter.

G9 Tensile Wire Capstan Grip

Model: #G9
Force: 2.5 kN
Specimen thickness: 5 mm
Clamp type: mechanical

G9P Tensile Wire Capstan Air Grip

Model: #G9P
Force: 2.5 kN
Specimen thickness: 5 mm
Clamp type: pneumatic

G13 Series Cord & Yarn Grips

Model: #G13
Force: 0.2 to 5 kN
Specimen thickness: 3 mm
Clamp type: pneumatic

G76 Series Manual Capstan Grips

Model: #G76
Force: 1, 5 & 20 kN
Specimen thickness: 9 mm
Clamp type: mechanical

G76P Pneumatic Capstan Grip

Model: #G76P
Force: 1, 5 & 20 kN
Specimen thickness: 9 mm
Clamp type: pneumatic

G77 Tensile Seat Belt Webbing Strapping

Model: #G77
Force: 50 kN
Specimen thickness: 2 mm
Clamp type: mechanical

G170 Series Capstan Tensile Grips for Wire Rope Cable

Model: #G170
Force: 50 to 250 kN
Specimen thickness: 20 mm
Clamp type: mechanical or hydraulic

G172 Series Capstan Webbing, Sheet & Ribbon Grips

Model: #G172
Force: 20 kN
Specimen thickness: 3 mm
Specimen width: 20, 40 & 60 mm
Clamp type: mechanical

G172P Series Pneumatic Capstan Webbing, Sheet and Ribbon Grips

Model: #G172P
Force: 3.5 kN
Specimen thickness: 3 mm
Specimen width: 40 mm
Clamp type: pneumatic

G185P Pneumatic Capstan Wire Cable Rope Grips

Model: #G185P
Force: 20 kN
Specimen thickness: 12 mm
Capstan Support Diameter: 138 mm or 185 mm
Clamp type: pneumatic

G221 Series Strap Webbing Sheet Ribbon Tensile Grips

Model: #G221
Force: 100 kN
Specimen thickness: 12 & 70 mm
Specimen width: 100, 150 & 200 mm
Clamp type: mechanical

G222 Strap Webbing Sheet Ribbon Tensile Grips

Model: #G222
Force: 20, 50, 100 & 200 kN
Specimen thickness: 6.3 to 15 mm
Specimen width: 30, 80 & 100 mm
Clamp type: mechanical

G252 Tensile Strap Webbing Ribbon Grips

Model: #G252
Force: 5 kN
Specimen thickness: 2.5 mm
Specimen width: 40 mm
Clamp type: mechanical

G255SK Tensile Wire Cord Capstan Grip

Model: #G255SK
Force: 10 kN
Specimen thickness: 4 mm
Specimen width: 25 mm
Clamp type: mechanical

G375 Bollard Horn Style Capstan Grip

Model: #G375
Force: 5 kN
Specimen thickness: 20 mm
Clamp type: mechanical

G375P Pneumatic Bollard Horn Capstan Grip

Model: #G375P
Force: 1.3 kN
Specimen thickness: 20 mm
Clamp type: pneumatic

Click here to go back to Tensile Grips selection

Needlenose Tensile Grips

Our Needlenose Tensile Grips are simple and a cost effective gripping solution that are ideal for small component testing and for testing in tight places. Needlenose tensile grips come in especially useful for product testing and pulling electrical components off of circuit boards. We offer a wide selection of options in both standard and custom engineered solutions. All of our needlenose tensile grips will fit any brand of test machine through the use of an adapter.

G7W Mechanical Wedge Grip

Model: #G7W
Force: 5 kN
Specimen max thickness: 8 mm
Clamp Type: Lever arm

G470 Tensile Spring Loaded Pincer Vice Grips

Model: #G470
Force: 2 kN
Specimen max thickness: 5 mm
Temperature: Max Temp up to 280°C, Min Temp 70°C
Clamp Type: Knob & spring action

G466 Needlenose Grip

Model: #G466
Force: 220 N
Specimen max thickness: 33 mm
Clamp Type: Knob & spring action

G205K Needlenose Grip

Model: #G205K
Force: 20 N
Specimen max thickness: 3.4 mm
Clamp Type: Spring action

G341 Mechanical Vice Grip

Model: #G341
Force: 0.1 kN
Specimen max thickness: 4 mm
Clamp Type: Knob

G501 Pincer Pneumatic Grip for Small Samples

Model: #G501
Clamp Force: 2 kN
Length: jaw 5 mm deep
Thickness: 0 to 6 mm
Width: jaw 5 mm wide

G341P Pneumatic Vice Grip

Model: #G341P
Force: 100 N
Clamp Force: 130 N
Specimen thickness: 3 mm

Click here to go back to Tensile Grips selection

Self Tightening Spring Action Grips

Our Self Tightening Spring Action Grip designs are simple and cost effective gripping solutions that are the ideal solution for testing highly flexible plastics and elastomeric materials. The self tightening spring action grips are offered in two basic design styles, four different product families and a dozen standard variations. We offer a wide selection of options in both standard and custom engineered solutions. All of our self tightening spring action tensile grips will fit any brand of test machine through the use of an adapter.

G766-40 Tensile Grip

Model: #G766
Force: 5 kN
Specimen thickness: 15 & 40 mm
Style: Eccentric Roller (Dual)

G7 Series Tensile Eccentric Roller Grips

Model: #G7
Force: 1, 5 & 10 kN
Specimen thickness: 0 to 8 mm
Temperature: 0 to +70 °C
Style: Eccentric Roller (Single)

G11 Spring Loaded Scissor Grips

Model: #G11
Force: 5, 20 & 50 kN
Specimen thickness: 48 mm
Style: Scissor

G230 Spring Loaded Scissor Grips

Model: #G230
Force: 2 kN
Specimen thickness: 28 mm
Style: Scissor

Click here to go back to Tensile Grips selection

Threaded & Buttonhead Sample Holders

Our threaded-end and shouldered buttonhead tensile test fixtures are ideal for threaded-end and shouldered round metal test samples. These common fixtures for universal test machines are designed to fit all threads, sample sizes, strengths and to meet industry test standards. Custom engineered solutions and sample adapter cups are available. We offer a wide selection of options in both standard and custom engineered solutions. Custom engineered solutions and sample adapter cups are available. All of our threaded and buttonhead sample holders will fit any brand of test machine through the use of an adapter.

G885 Sample Holder

Model: #G885
Force: 300 kN
Specimen type: Threaded-End and Buttonhead
Size range: Threads M9 to M24 * Buttonhead 5 to 18 mm

G89 Sample Holder

Model: #G89
Force: Up to 300 kN
Specimen type: Buttonhead
Size range: 4 to 24 mm

G4 Buttonhead Holder

Model: #G4
Force: 50 to 1000 kN
Specimen type: Buttonhead
Size range: 20 to 56 mm

G565 Series Tensile Buttonhead Holders

Model: #G565
Force: Up to 300 kN
Specimen type: Threaded-End and Buttonhead
Size range: Threads M6 to M16 * Buttonhead to 36 mm

G179 Tensile Thread Grips for Bolts

Model: #G179
Force: 20 to 600 kN
Specimen type: Threaded-End Screws, Bolts and Studs
Size range: 3 to 40 mm

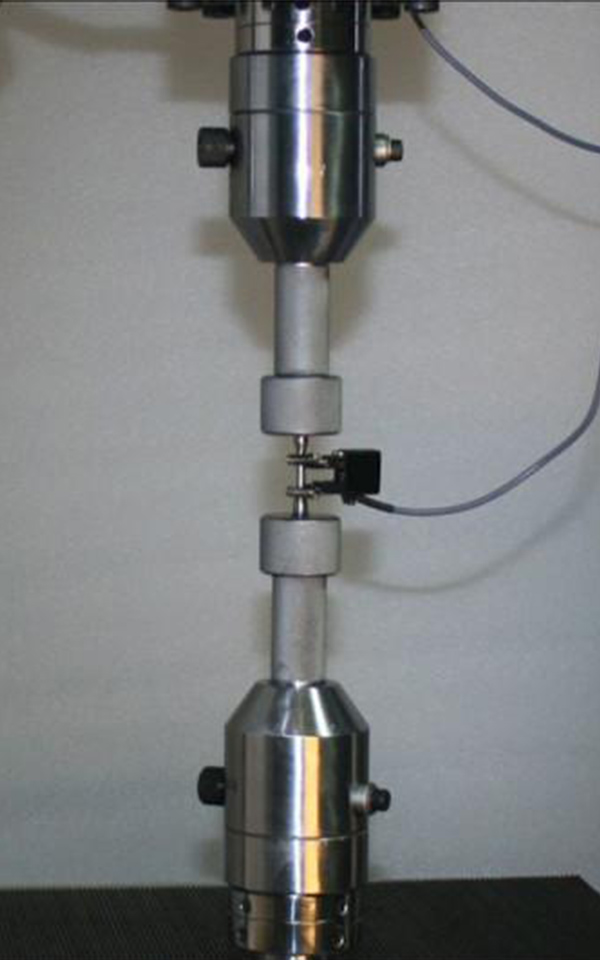

GB5-900 High Alignment Mechanical Grip

Model: #GB5-900
Force: 25 & 50 kN
Specimen type: Threaded-End and Buttonhead
Size range: Threads M8 to M16 * Buttonhead 8 to 16 mm

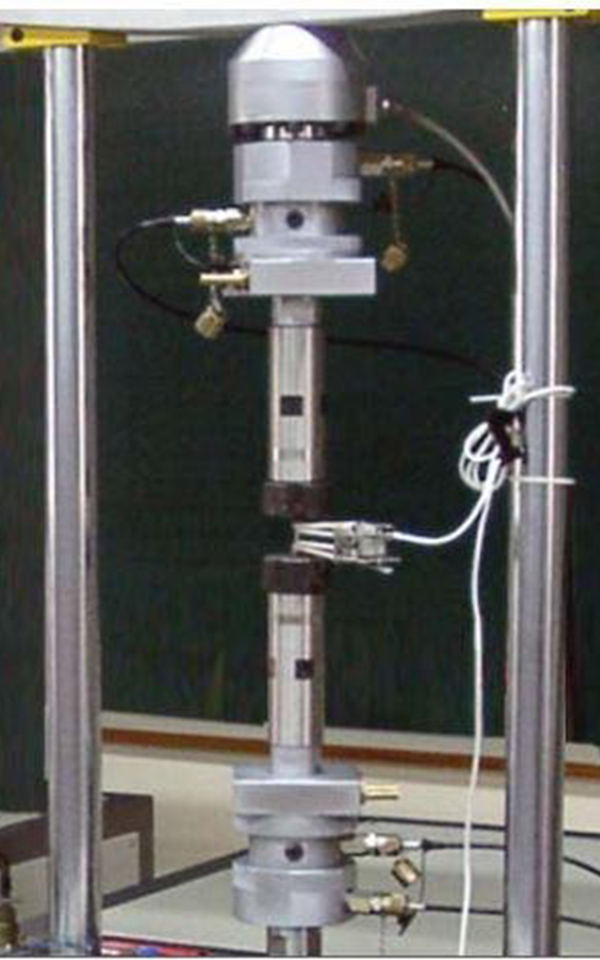

GB5-600 High Alignment Hydraulic Grips

Model: #GB5-600
Force: 50, 100 & 300 kN (fatigue rated)
Temperature: Up to 900 degC
Specimen type: Threaded-End and Buttonhead
Size range: Threads M8 to M16 * Buttonhead 8 to 16 mm

GB5-700 High Temperature High Alignment Hydraulic Grips

Model: #GB5-700
Force: 50 to 300 kN (fatigue rated)
Temperature: Up to 900 degC
Specimen type: High Temperature Threaded-End and Buttonhead
Size range: Threads M8 to M16 * Buttonhead 8 to 16 mm

Click here to go back to Tensile Grips selection

Sample Specific Tensile Holders

Our Sample Specific Tensile Holders designs are simple and a cost effective gripping solution. They are ideal for testing components, products or samples that are unique and cannot be tested with conventional grips and fixtures. The sample specific tensile holders are offered in numerous design styles that are leveraged off of our vast product line. Be assured that TestResources can solve any gripping challenge that you may have. All of our sample specific tensile holders will fit any brand of test machine through the use of an adapter.

G314 Wire Terminal Grip

Model: #G314
Force: 20 kN
Application: Wire Lug, Terminal, Connector Tensile Grip

G9C Ammunition Cartridge Shell Casing Holder

Model: #G9C
Application: Ammunition Cartridge and Shell Casing Holder

G16-D22 Tensile Strength of Caps

Model: #G16-D22
Application: Cap Tensile Strength Testing

G162 Syringe Holder

Model: #G162
Application: Syringe Holder

G242 Cap Pull Test Fixture

Model: #G242
Application: Cap Pull Test Fixture

G325 Slotted Universal Tensile Fixture

Model: #G325
Application: Slotted Universal Tensile Fixture

G327 Tensile Holder

Model: #G327
Application: Universal Joint for Aligning Tensile Samples

G504 Tensile Holder

Model: #G504
Application: Universal Tensile Holder

G562 Cork Pull Test Fixture

Model: #G562
Application: Wine Bottle Cork Pull Test

G665-10kN Flexible Adapter

Model: #G665
Application: Flexible Tensile Adapter

G727 Syringe Test Fixture

Model: #G727
Application: Syringe Test Fixture

G807 Tensile Chuck for Rounds

Model: #G807
Application: Tensile Chuck for Round Samples

G913 Tensile Clevis Grips

Model: #G913
Application: Tensile Clevis Grips

GA327 Tensile Universal Joint

Model: #GA327
Application: Universal Joint for Aligning Tensile Samples

ASTM C297 Tensile Bond Fixture

Model: #GC297-113
Application: Tensile Strength of Sandwich Composites

ASTM C307 Tension Fixture

Model: #GC307-474
Application: Tensile Strength of Mortar

ASTM C633 Bond Strength Fixture Thermal Spray

Model: #GC633-179
Application: Tensile Adhesion of Thermal Spray Coating

GD412-43 Tensile O-Rings

Model: #GD412-43
Application: Tensile O-Rings

ASTM D412 Method B O-Ring Test Fixture

Model: #GD412-B-44
Application: Tensile Strength of O-Rings

ASTM D897 Tensile Fixture Adhesive Bonds

Model: #GD897-832
Application: Tensile of Adhesive Bonds

ASTM D1623 Method A Tensile Bond Grips for Foam Test

Model: #GD1623A-701
Application: Foam Tensile Adhesion

GD4595-135 Tensile Geogrid

Model: #GD4595-135
Application: Tensile testing of Geogrid

ASTM D4964 Tension Elastic Fabric Test Fixture

Model: #GD4964-43
Roller Diameter: 6.5 mm or 13 mm
Application: Tension of Fabrics

ASTM D7269 Tensile Fixture for Aramid Yarns

Model: #GD7269-13
Application: Aramid Yarn Tensile Test

GD7332-839 Fastener Pull Through Fixture

Model: #GD7332-839
Application: Fastener Pull Through Fixture

ASTM F1147 Fixture for Tensile Testing Calcium Phosphate

Model: #GF1147-179
Application: Tension Testing of Calcium Phosphate & Metallic Coatings

GISO898-1 Tensile Fixture for Screws

Model: #GISO898-1
Application: Tensile Fixture for Screws

Click here to go back to Tensile Grips selection

Hook and Loop Test Fixtures

Our Hook and Loop Test Fixtures designs are simple and cost effective fixturing solution. They are the ideal solution for components and products that are loops. Hook and loop test fixtures are especially useful for product testing and pulling on circular components such as rubber bands, o-rings belts and much more. We offer a wide selection of options in both standard and custom engineered solutions. All of our hook and loop tensile grips will fit any brand of test machine through the use of an adapter.

ASTM D412 Method B O-Ring Test Fixture
