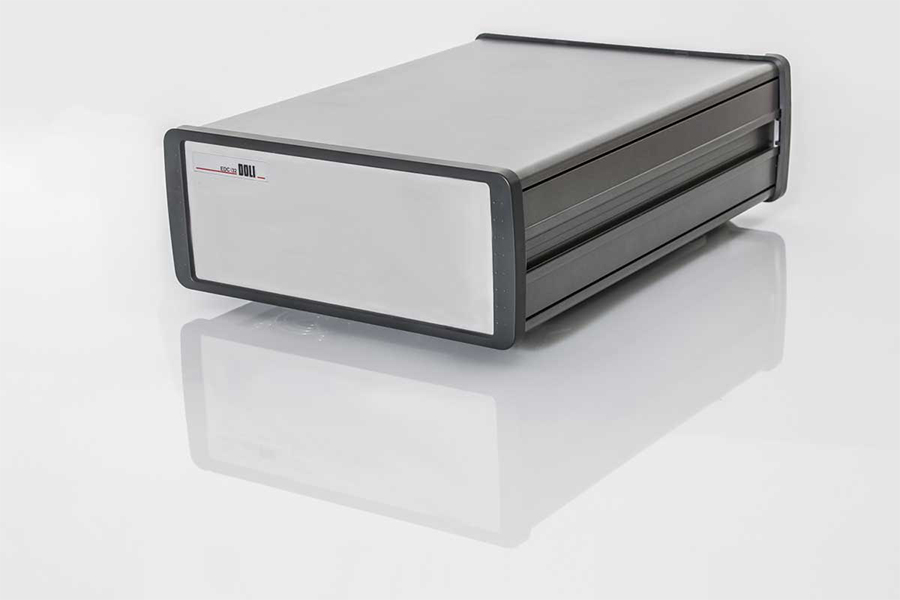

EDCi2x

The EDCi2x family is ideal for use in static test tasks, but the basic equipment already has numerous functions and flexible expandability to up to 3 intelligent sensor modules.

EDCi5x

The EDCi5x family offers the perfect introduction to dynamic test tasks with a higher system cycle and higher sampling rates.
The EDCi5x line can also be expanded modularly and flexibly adapted to your application.

EDCi7x

With the EDCi7x family you can safely master any high-end application. With a system clock of up to 10kHz and a subsequent expansion of the functionalities with up to 8 intelligent sensor modules (iSI) you have a powerful core for the most demanding applications.

Software capabilities

• Possible X- and Y-axis quantities: load, stress, X-head travel, strain, technical strain, time (from test start), true strain, nominal strain, time and defined signal input
• Determination of five values on the X- or Y-axis, maximum, breach as X- and Y-value
• Statistic functions: mean value, min/max value, range, median, standard deviation, practical limit of error, aso
• Display of all the data sent by the instrument: load, X-head travel, strain and defined signal input
• Allows real time data/graph plotting
• Displays in real time all relevant system parameters, such as oil temperature, pressure and level
• Capable of concurrently acquire and process data from at separate transducers
• Intuitive to use and to design new loading sequences
• Enables user to capture and extract all data in a raw format
• Allows up to more than 20 separate data acquisition channels
• Supports sine, triangle, square, holds, ramps waveform types
• Fast data transfer of logged information to a PC at a rate of up to at least 10 kHz on all channels (depends to EDC type)
• Allows users to code custom calculations

Test standards

• Standards for metal testing:
  tensile, compression, LCF, draw-wire test, bending test, r-n value for screws (EN10002, DIN898), JIC, KIC, CTOD, COD, DCPD, da/dN crack growth rate, etc
• Standards for plastic testing:
  tension, compression, 3/4-point bending, creepage modulus, hardness of ball well, stress
• Standards for textile testing:
  Continuous tearing/cutting/static friction, peeling test, tensile, hysteresis, etc
• Standards building material:
  3/4 point bend, CBR coefficient, marshall, apex, bending fracture, static modulus of elasticity, cross sleeper, etc
• Other standards:
  for rubber, springs, glass, ceramics and universal purposes

Test&MotionPlus modules library interface

Software capabilities

• Setting, calibration and control loop configuration
• Optimized graphical frontend for easy adjustment of control loop parameters
• Built-in functions for convenient calibration and adjustment of sensors
• Test Center Light: Easy-to-use frontend for turning on the machine and instructing simple machine movements
• Powerful numerical and graphical display for displaying measured values
• Extended GUI for executing parameterization and execution commands on the controller
• Save the measurement results, e.g. for later analysis after import

Installation Center interface

Function overview

• Powerful motion commands for static and dynamic applications
• Convenient data processing through event handlers
• Extensive configuration commands
• Direct access to analog and/or digital inputs for general purposes
• Streamlined commands to simplify sensor configuration
• Intelligent connection handling to multiple EDCi

Installation Center interface
